Turbine Steam Compressors
compression to increase the temperature and enthalpy of the secondary steam generated in the evaporation and concentration process to achieve the required heat transfer
temperature difference for operation and to enable the reuse of the secondary steam
with low temperature and low pressure. A small amount of electric energy is used to
recover the latent heat of the low-temperature and low-pressure secondary steam, so
as to achieve energy saving and emission reduction, and reduction of production costs.
Industries and fields in which MVR is applied
MVR has a wide range of applications. The evaporation of the solution with rise of boiling point less than 15°C has obvious energy saving and cost reduction effects, and it can be used.
1、Chemical industry: the concentration of light salt brine in the chlor-alkali industry; the evaporation and crystallization of sodium sulfate; the evaporation and crystallization of ammonium chloride and ammonium sulfate, etc;
2、Pharmaceutical industry: concentration of traditional Chinese medicine liquid, etc；
3、Food industry: milk evaporation, etc；
4、Environmental protection industry:evaporation, concentration and crystallization of high concentration salty waste water, high-organicwaste water, etc.; evaporation and concentration of landfill leachate, etc.; treatment of electroplating liquid waste water, metallurgical waste water, etc., recycling and utilization of resources, zero discharge of waste water, etc;
5、Thermal power plant:desulfurization waste water treatment, etc.

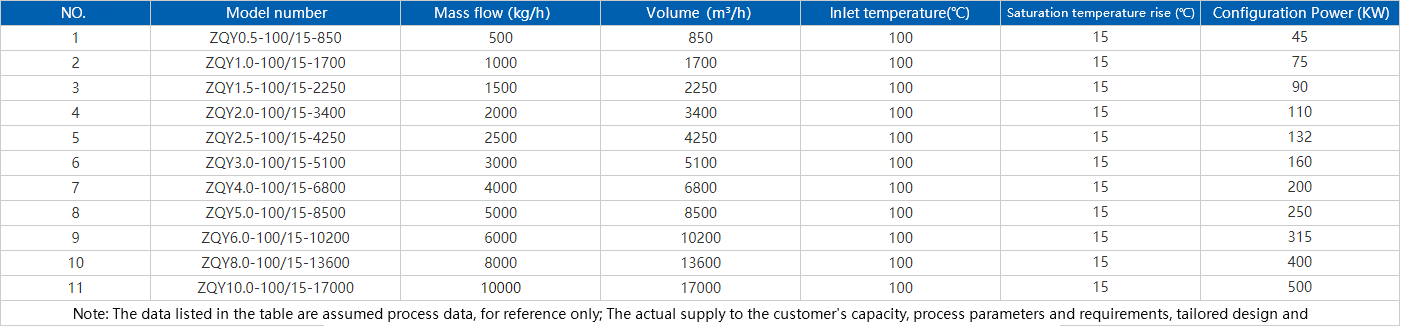

Performance parameter table
